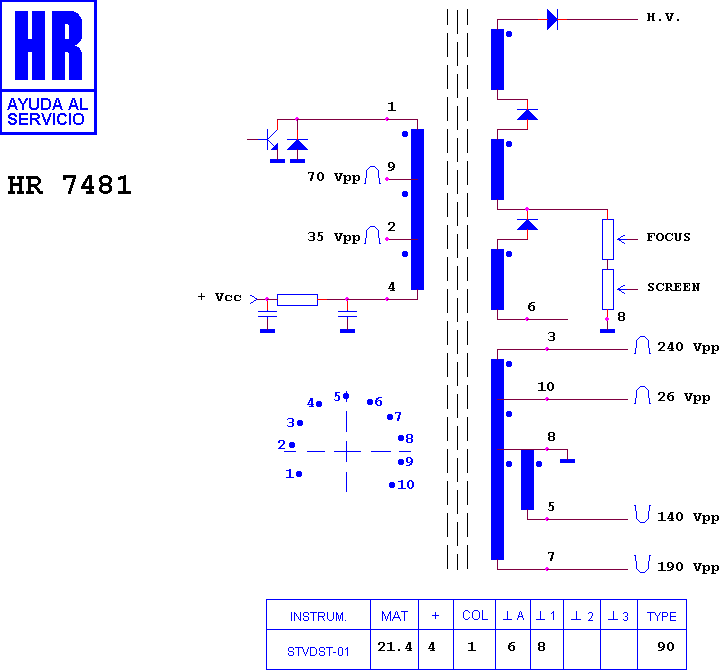

HR 7481

type ST · family 1XP1 · 21.4 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

Manufacturer equivalents (6)

5 TH 0000091 · 50 H 0000091 · AB50H0000091 · DCF 2077 · DCF 2077 N · FAT 30763

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7455 · HR 7482 · HR 7456 · HR 8207 · HR 8573 · HR 6357 · HR 7264 · HR 80177 · HR 6009 · HR 6555 · HR 6407 · HR 6408

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (19)

ALBA 2420 · ALBA CTV 702 · BUSH-MURPHY-RANK 2420 · BUSH-MURPHY-RANK CHASIS C 600 · BUSH-MURPHY-RANK CTV 702 20" · DAEWOO DCS 2037 VR · DAEWOO DMQ 2014 · DAEWOO DMQ 2017 · DIAMOND CST 4824 · DIAMOND CST 4828 · FENNER CHASIS C 42 MS · FENNER CHASIS C 600 · FENNER FTV 2011 · G.B.C. CHASIS C 800 · G.B.C. DMQ 2025 · G.B.C. VIENNA 20 · MITSUBISHI C 4824 · MITSUBISHI C 4828 · NEC N 4810
