HR 8412

type ST · family 1YP · 47.4 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

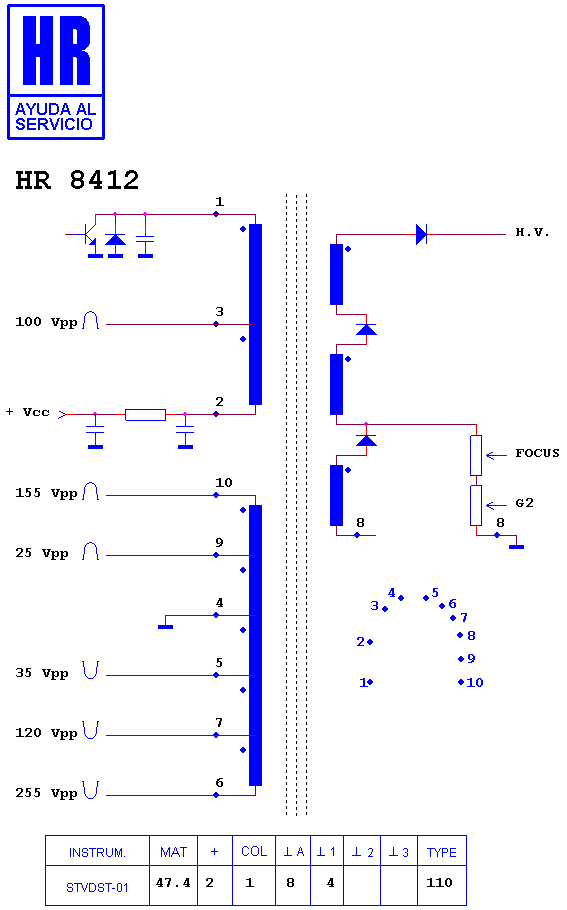

Schematic diagram for HR 8412
schematic

Manufacturer equivalents (3)

23236483 · TFB 4129 AD · TFB 4151 AD

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8418 · HR 8433 · HR 8503 · HR 80122 · HR 8294 · HR 80057 · HR 8833 · HR 8380 · HR 7754 · HR 8193 · HR 80138 · HR 80116

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (10)

SEMP TOSHIBA TV 2966 S · SEMP TOSHIBA TV 2987 CS · SEMP TOSHIBA TV 2987 CSU · SEMP TOSHIBA TV 2998 EMS · TOSHIBA 2966 S · TOSHIBA TV 2966 S · TOSHIBA TV 2987 CS · TOSHIBA TV 2987 CSU · TOSHIBA TV 2998 EMS · TOSHIBA TVC 2966 S
