HR 8251

type ST · family 1YP · 41.7 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

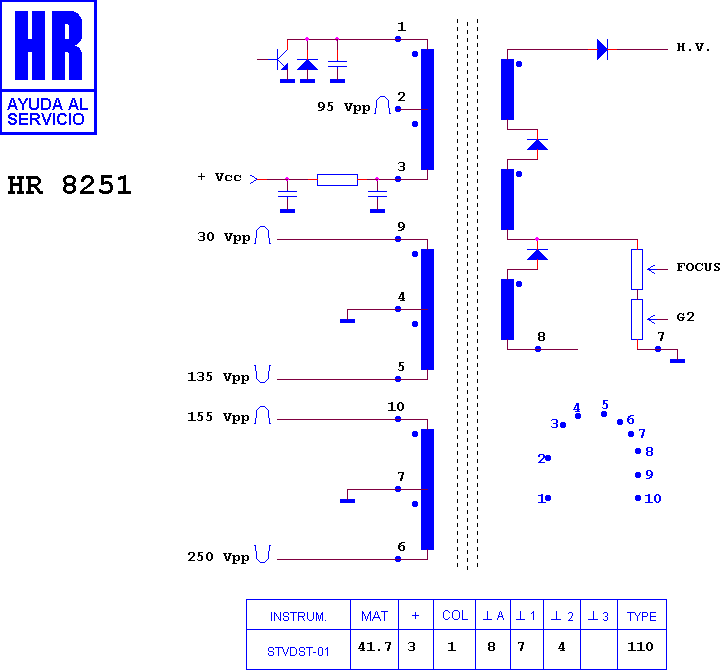

Schematic diagram for HR 8251
schematic

Manufacturer equivalents (6)

154 179 M · 154A53D · 6174V5009C · FBT 2990 A · FBT2990 · TAT2990A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8838 · HR 8409 · HR 80091 · HR 80085 · HR 8867 · HR 8412 · HR 80122 · HR 80057 · HR 8864 · HR 8503 · HR 8418 · HR 7949

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

CCE HPS 2990 · GOLDSTAR - LG CP 29 C 10 · GOLDSTAR - LG CP 29 C 84 · GOLDSTAR - LG CP 29 C 84 M · GOLDSTAR - LG CP 29 C 85

Search this part in the full database
