HR 7697

type ST · family 1ZP · 33.3 kV maximum anode voltage · 110° deflection · 3 windings · 300 g

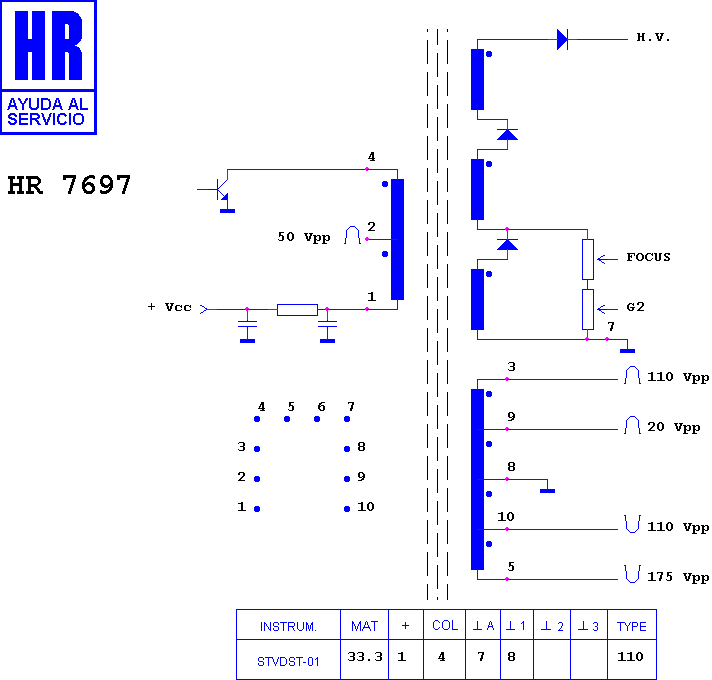

Schematic diagram for HR 7697
schematic

Manufacturer equivalents (5)

043220025 · 043220025 W · 0432200251 · 3220025 · 3220025W

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7905 · HR 7676 · HR 6585 · HR 8886 · HR 8220 · HR 80243 · HR 80085 · HR 6555 · HR 80074 · HR 8524 · HR 80126 · HR 8831

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
