HR 80059

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

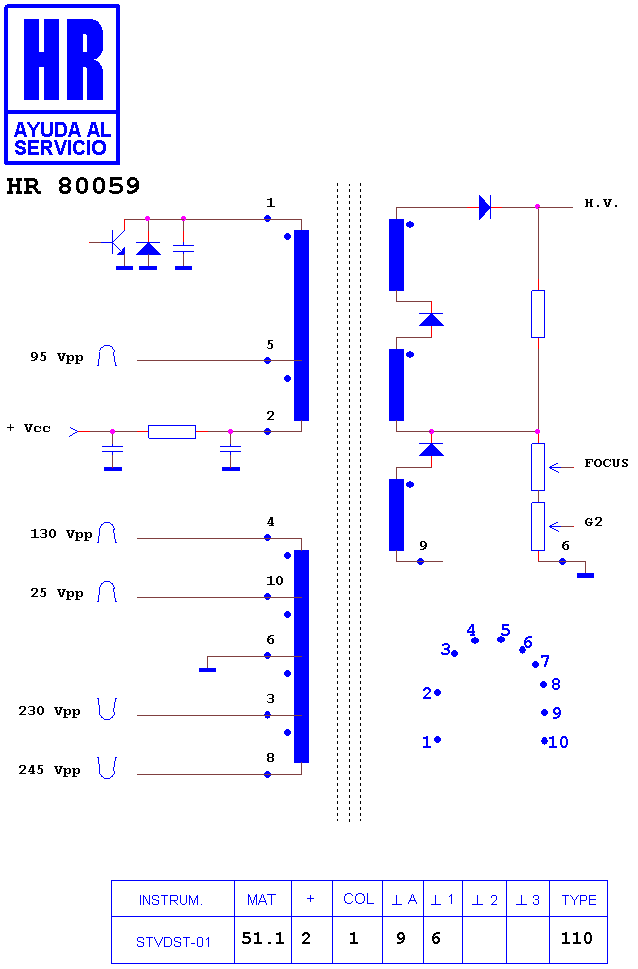

Schematic diagram for HR 80059
schematic (archived)

Manufacturer equivalents (6)

6174V6003J · 6174V6003X · BSC28N2307 · BSC28N2321 · F36N.5019 · HR 80059

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80057 · HR 7700 · HR 80042 · HR 80142 · HR 8506 · HR 80051 · HR 7982 · HR 7955 · HR 80063 · HR 8714 · HR 8893 · HR 8473

Fitted to (3)

GOLDSTAR - LG CP 29 K 30 · GOLDSTAR - LG CP 29 M 30 · GOLDSTAR - LG RL 29 FA 33 X
