HR 7610

type ST · family 1YP · 22.2 kV maximum anode voltage · 110° deflection · 3 windings · 388 g

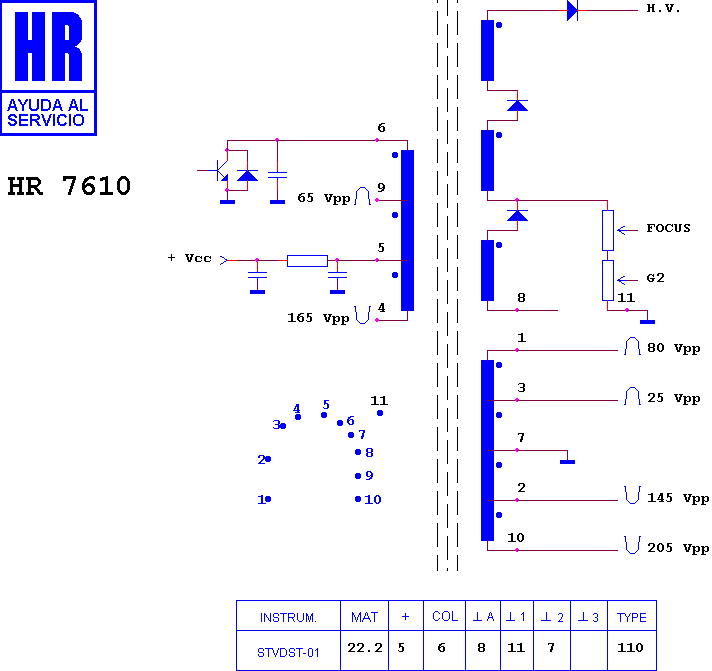

Schematic diagram for HR 7610
schematic

Manufacturer equivalents (6)

2859 154 109 · 2859 154 127 · 32859 154 109 · 32859 154 127 · FCR 28 A 002 · MSU-1FDR24

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7911 · HR 7717 · HR 8473 · HR 8780 · HR 8131 · HR 8220 · HR 8714 · HR 7699 · HR 7949 · HR 7084 · HR 6298 · HR 7700

Fitted to (6)

SAMSUNG CB 630 W · SAMSUNG CB 685 DIT · SAMSUNG CB 685 W · SAMSUNG CHASIS P 61 TS · SAMSUNG CX 630 W · SAMSUNG CX 685 W
