HR 7717

type ST · family 1VP · 25.2 kV maximum anode voltage · 110° deflection · 4 windings · 389 g

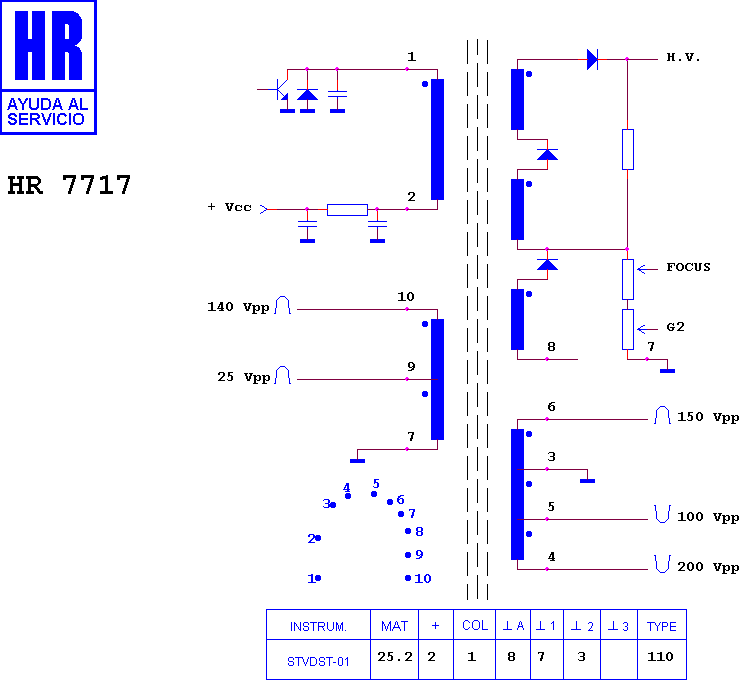

Schematic diagram for HR 7717
schematic

Manufacturer equivalents (4)

053 X 0528-001 · 2027017-001 · 49-0274-00 · 53 X 0528-001

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7699 · HR 80058 · HR 8473 · HR 7949 · HR 8131 · HR 8714 · HR 7084 · HR 8220 · HR 8780 · HR 8815 · HR 6701 · HR 8212

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

WELLS GARDNER ARCADE · WELLS GARDNER K 7000 · WELLS GARDNER K 7000 A · WELLS GARDNER K 7000 B · WELLS GARDNER MONITOR
