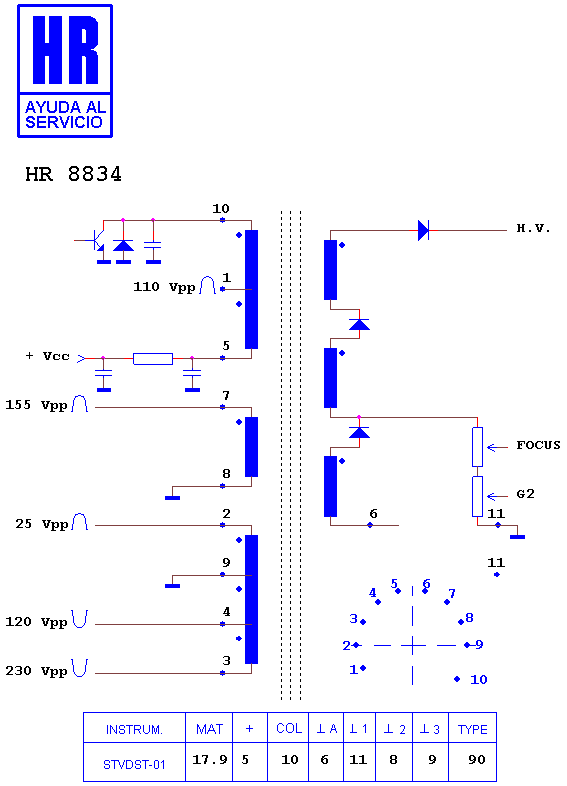

HR 8834

type ST · family 1XP1 · 17.9 kV maximum anode voltage · 90° deflection · 4 windings · 256 g

Manufacturer equivalents (1)

TLF 70225

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8547 · HR 7769 · HR 8807 · HR 8605 · HR 8911 · HR 7457 · HR 7711 · HR 8088 · HR 7817 · HR 7816 · HR 7822 · HR 7723

Fitted to (3)

CINERAL TC 1010 R · EMERSON TC 0910 R · EMERSON TC 1010 R
