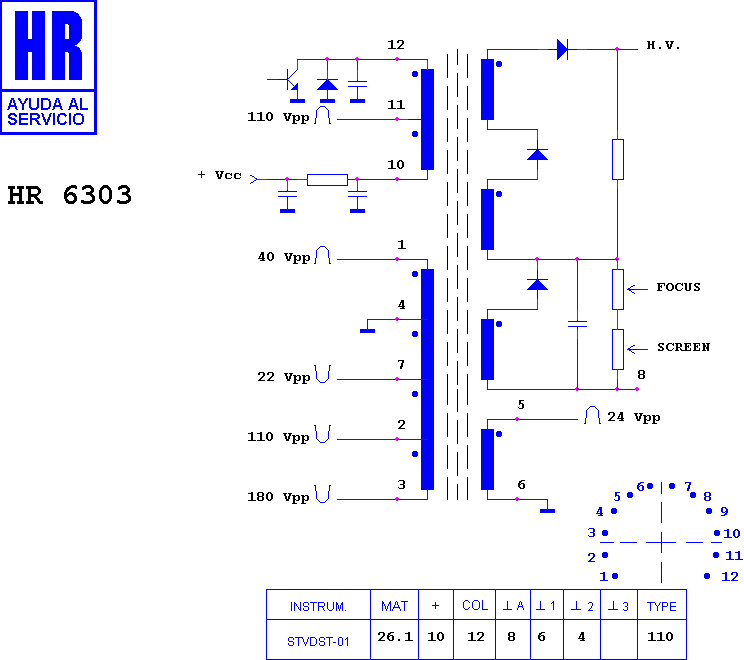

HR 6303

type ST · family 1MP · 26.1 kV maximum anode voltage · 110° deflection · 3 windings · 394 g

Manufacturer equivalents (6)

003011113 · 3589 · 8 667 210 420 · P/050/10 · RO 207 · TR 286

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8766 · HR 80116 · HR 7823 · HR 8931 · HR 8016 · HR 8596 · HR 6408 · HR 7905 · HR 7697 · HR 8968 · HR 80243 · HR 8524

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

NORDMENDE 2.536 K · NORDMENDE 782.536 K · NORDMENDE CHASIS F 8 · NORDMENDE SPECTRA COLOR SK3
