HR 6719

type SM · family 1BS1 · 29.9 kV maximum anode voltage · H° deflection · 3 windings · 410 g

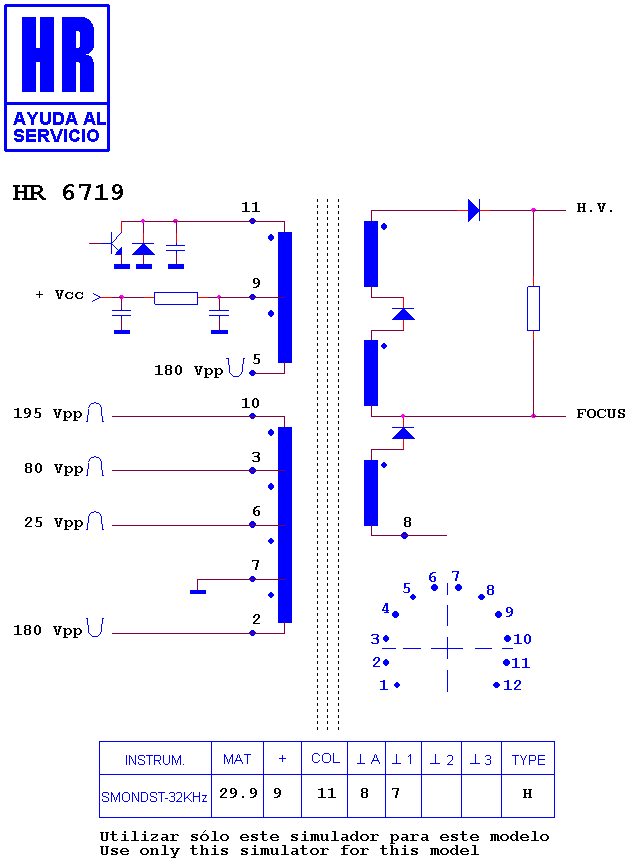

Schematic diagram for HR 6719
schematic (archived)

Manufacturer equivalents (12)

016801001 · 1182.6072 · 1182.6072 A · 1182.6072 B · 1182.6072 C · 1182.6072 D · 2016801001 · 29201.680.10 · 29201.680.1001 · 29221.680.10 · 29221.680.1001 · HR 6719

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7080

Fitted to (4)

GRUNDIG 92-6110/9 DVD · GRUNDIG CHASIS CUC 1937 · GRUNDIG LENARO 92 FLAT MFW · GRUNDIG MFW 6110/9 DVD
