HR 7111

type ST · family 1NP1 · 21.7 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

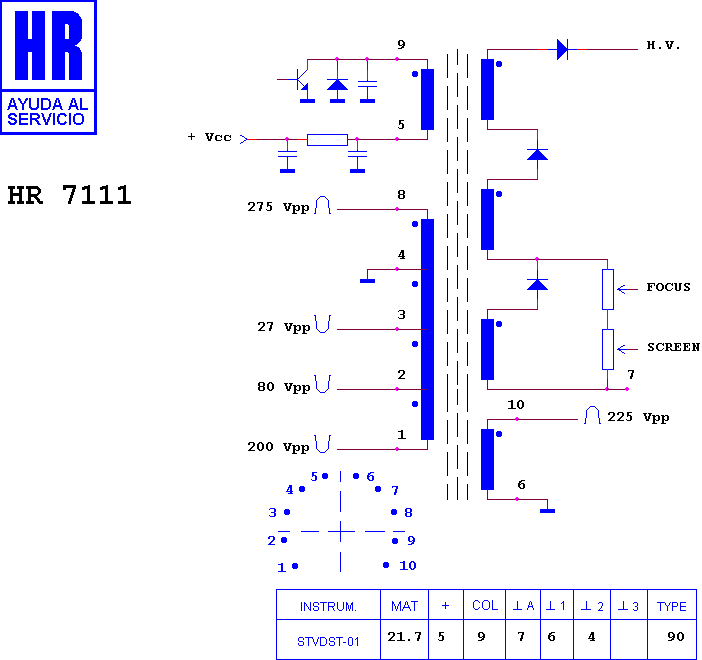

Schematic diagram for HR 7111
schematic

Manufacturer equivalents (1)

HR 7111

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7032 · HR 7042 · HR 7105 · HR 7035 · HR 7082 · HR 7112 · HR 7455 · HR 7655 · HR 8958 · HR 7772 · HR 8205 · HR 7839

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
