HR 7099

type ST · family 1AP2 · 20.4 kV maximum anode voltage · 90° deflection · 5 windings · 320 g

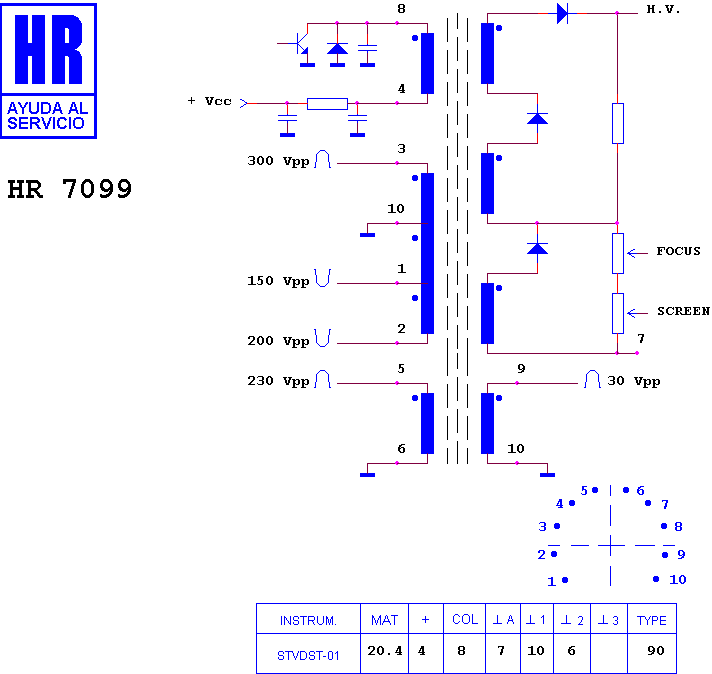

Schematic diagram for HR 7099
schematic

Manufacturer equivalents (14)

032 315 00 · 1192.0659 · 1192.0659A · 1362.3014 · 32015.00 · 32315.00 · 32315.01 · 32315.02 · 32315.50 · 534 TX 0313 · 84230217 · FAT30470 · H0701899 · HR 7099

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7043 · HR 8915 · HR 7076 · HR 8205 · HR 8898 · HR 7730 · HR 8807 · HR 8547 · HR 7094 · HR 7772 · HR 7082 · HR 7816

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
