HR 7043

type ST · family 1NP1 · 18.9 kV maximum anode voltage · 90° deflection · 4 windings · 270 g

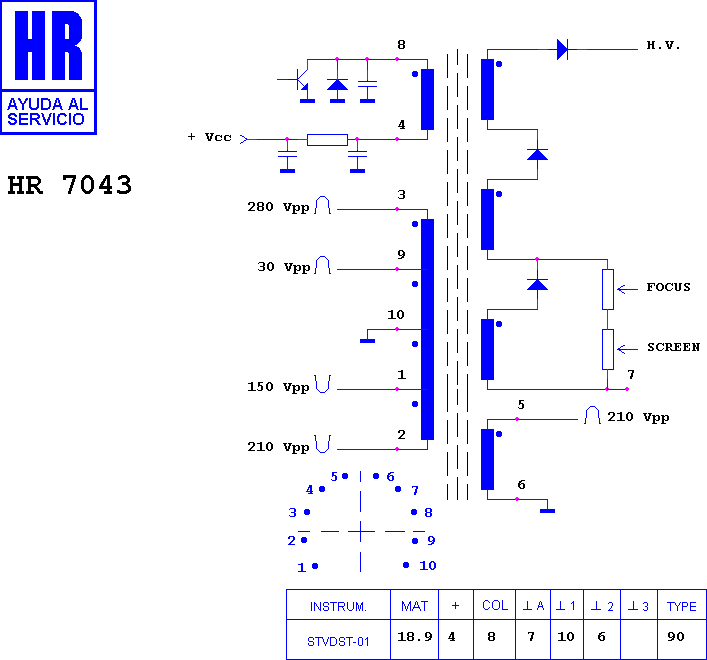

Schematic diagram for HR 7043
schematic

Manufacturer equivalents (6)

1105.1417 · 32312.00 · 32312.01 · 32312.02 · 534 TX 0320 · 84230150

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7099 · HR 7938 · HR 8156 · HR 7767 · HR 8101 · HR 7746 · HR 8687 · HR 7076 · HR 7759 · HR 7094 · HR 8205 · HR 7756

Fitted to (2)

SABA STM 15-1 · THOMSON 15 M 1
