HR 7746

type ST · family 1YP · 32.2 kV maximum anode voltage · 90° deflection · 3 windings · 374 g

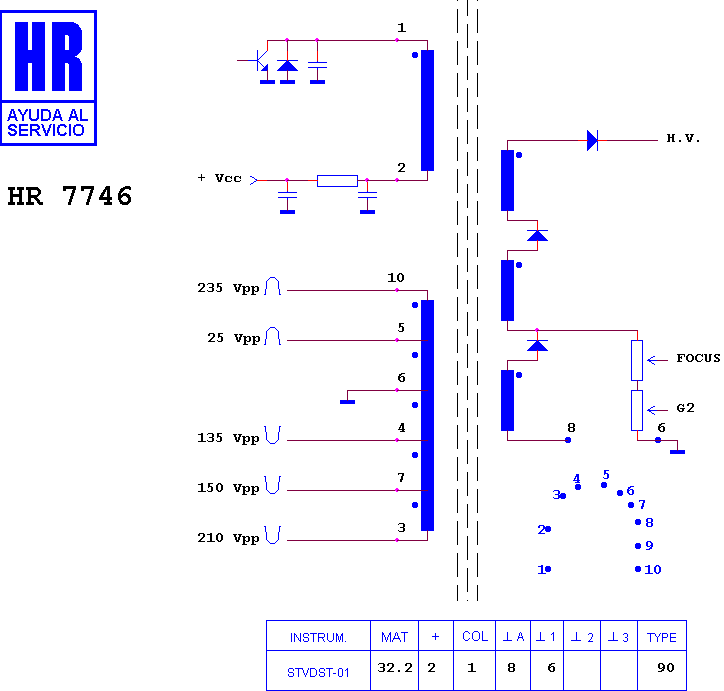

Schematic diagram for HR 7746
schematic

Manufacturer equivalents (4)

4030A · 40L30AY · AT2078/YA · ETF 40 L 30 AY

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8930 · HR 8898 · HR 7434 · HR 8587 · HR 7730 · HR 8915 · HR 8420 · HR 8096 · HR 7759 · HR 7756 · HR 7952 · HR 7156

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
