HR 80029

21 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

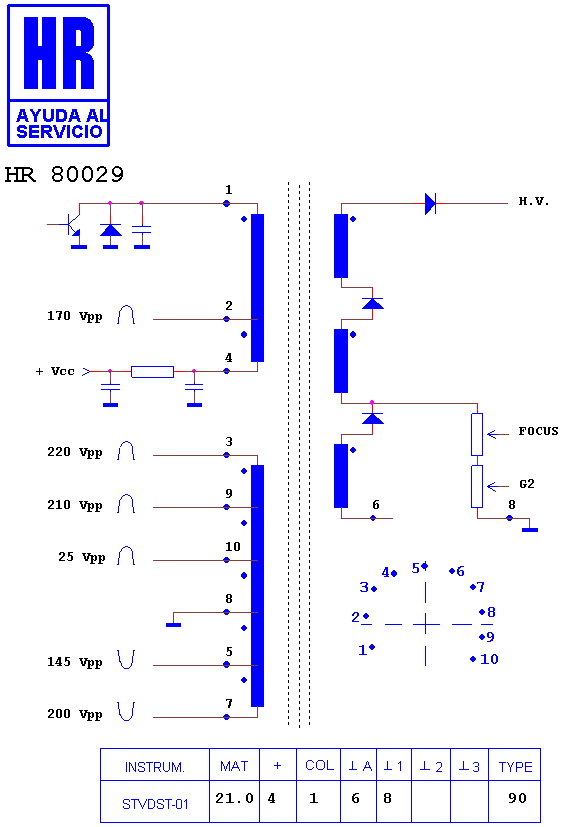

Schematic diagram for HR 80029
schematic (archived)

Manufacturer equivalents (2)

FSA27018M · FSA27018N

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8156 · HR 8767 · HR 5714 · HR 8101 · HR 7889 · HR 8587 · HR 7746 · HR 8930 · HR 5739 · HR 5704 · HR 8103 · HR 7756

Fitted to (16)

BAK 1411 · BAK 1422 · BAK 2011 · BAK 2022 · CINERAL 1411 · CINERAL 1422 · CINERAL 2011 · CINERAL 2022 · CINERAL 5262 · CINERAL PC 1411 · CINERAL TC 1411 · CINERAL TC 1422 · CINERAL TC 2011 · CINERAL TC 2022 · CINERAL TVC 5262 · CINERAL TVE 5262
