HR 8156

27.1 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

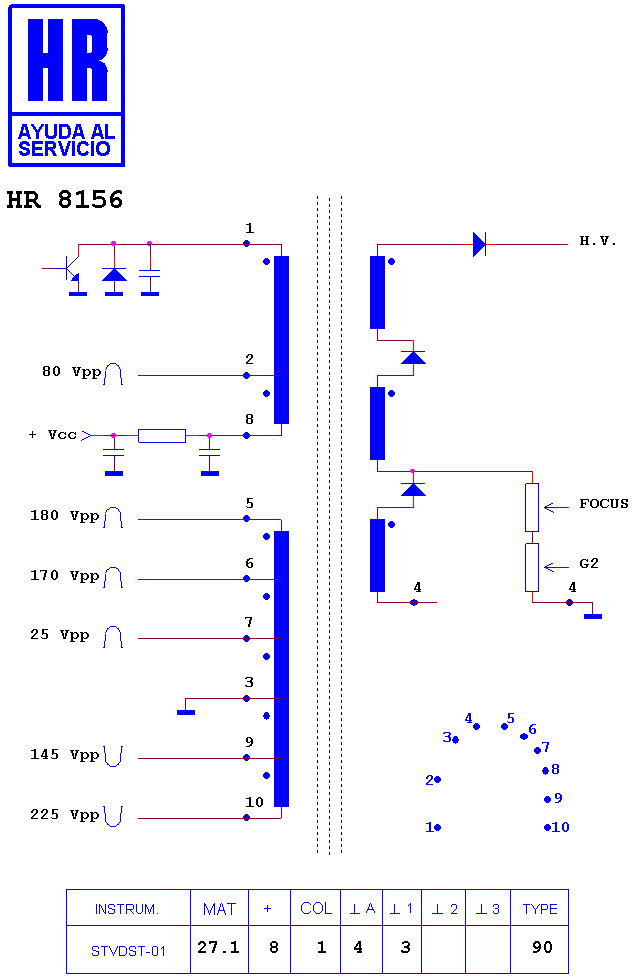

Schematic diagram for HR 8156
schematic (archived)

Manufacturer equivalents (2)

BSC25-6501 · FBT4205

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 5714 · HR 7746 · HR 8767 · HR 8587 · HR 5739 · HR 80029 · HR 7043 · HR 7156 · HR 7759 · HR 8101 · HR 7756 · HR 8103

Fitted to (8)

DAWA TW 5488 · DAWA TX 5488 · KANGLI 5448 · KANGLI 5456 · KANGLI 5468 · KANGLI C 217 · PHILIPS 54436 PX · PHILIPS CTV 54436 PX
