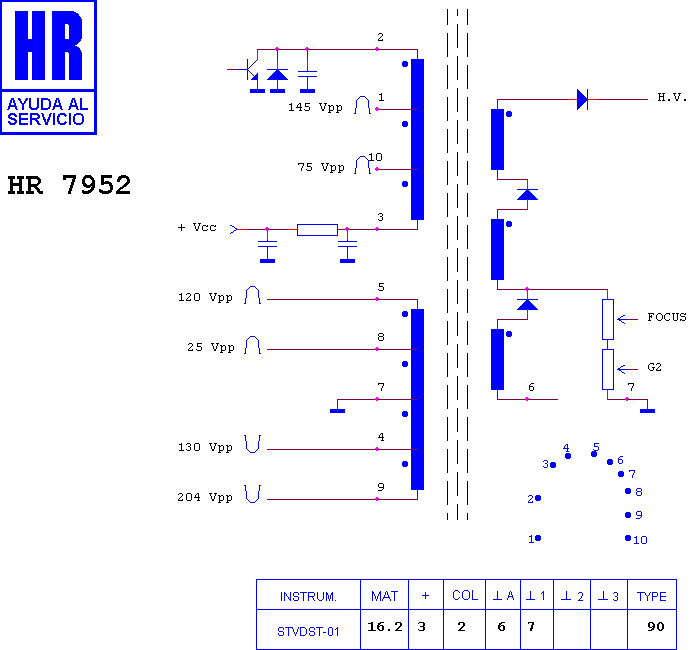

HR 7952

type ST · family 1XP1 · 16.2 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

Manufacturer equivalents (2)

TCM 20 A 07 · TCM 20 A 07 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7717 · HR 8807 · HR 7434 · HR 8605 · HR 8156 · HR 7978 · HR 8834 · HR 8103 · HR 7457 · HR 7889 · HR 7797 · HR 8930

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

AR SYSTEMS ARS 2010 TC · FULTON 2010 TC · FULTON CHASIS EL 200 · LOGISTICS 2010 TC · LOGISTICS CHASIS EL 200
