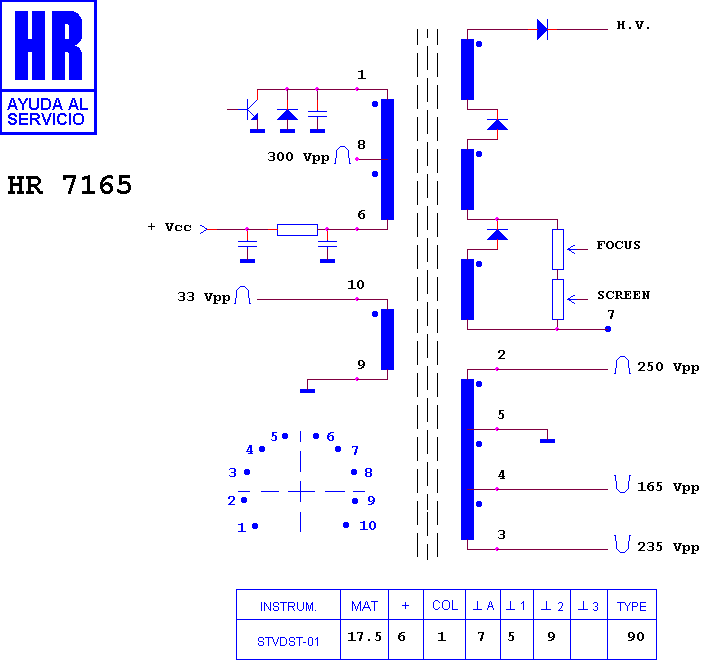

HR 7165
Manufacturer equivalents (8)
00 D-4-235-002 01G · 00 D-4-235-002 01G1 · 00 D-4-235-002 HT1 · 2433451 · 2433451 H · FAT3552 · KN3552 · TR 4178
Possible substitutes
Parts of a similar design. A shortlist to check, not a recommendation.
HR 7156 · HR 7041 · HR 7043 · HR 7076 · HR 7099 · HR 7847 · HR 8898
Notes
THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
Fitted to (30)
BAIRD 6170 · BAIRD 6170 14 · BAIRD 6171 · BAIRD CHASIS TX 90 · FERGUSON-THORN-EMI 14 C 1 · FERGUSON-THORN-EMI 14 C 2 · FERGUSON-THORN-EMI 14 C 9 · FERGUSON-THORN-EMI 36140 · FERGUSON-THORN-EMI 36141 · FERGUSON-THORN-EMI 36282 · FERGUSON-THORN-EMI 37140 · FERGUSON-THORN-EMI 37141 · FERGUSON-THORN-EMI 37149 · FERGUSON-THORN-EMI 6170 · FERGUSON-THORN-EMI 6171 · FERGUSON-THORN-EMI CHASIS TX 90 · FERGUSON-THORN-EMI CHASIS TX 90 90§ · FERGUSON-THORN-EMI CHASIS TX 90 RED SPOT · FERGUSON-THORN-EMI MC 01 · FERGUSON-THORN-EMI MC 05 · FERGUSON-THORN-EMI RED SPOT · FERGUSON-THORN-EMI T 9031 A · FERGUSON-THORN-EMI TX 90 · GRANADA 14 C 012 · GRANADA 14 C 013 · GRANADA 14 E 011 · GRANADA CHASIS TX 90 · GRANADA D 14 C 2 · GRANADA RED SPOT · GRANADA TX 90
