HR 7767

type ST · family 1XP1 · 19 kV maximum anode voltage · 90° deflection · 3 windings · 284 g

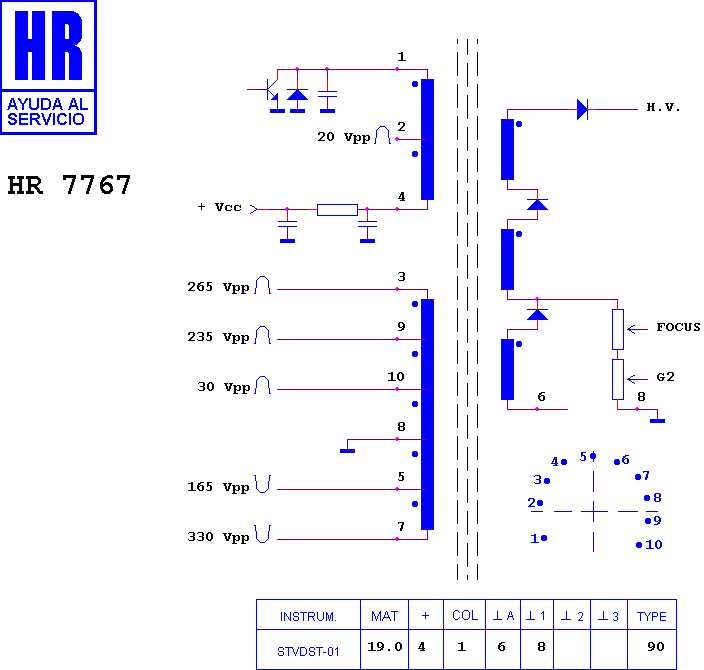

Schematic diagram for HR 7767
schematic

Manufacturer equivalents (2)

79 TD 0308 · KFS 60280

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7099 · HR 7076 · HR 7111 · HR 7082 · HR 7488 · HR 7043

Fitted to (6)

DIAMOND CST 1426 · NEC 14 C 14 NZ · NEC 14 C 15 RNZ · NEC 14 T 431 PD · NEC N 1426 · NEC N 1426 A
