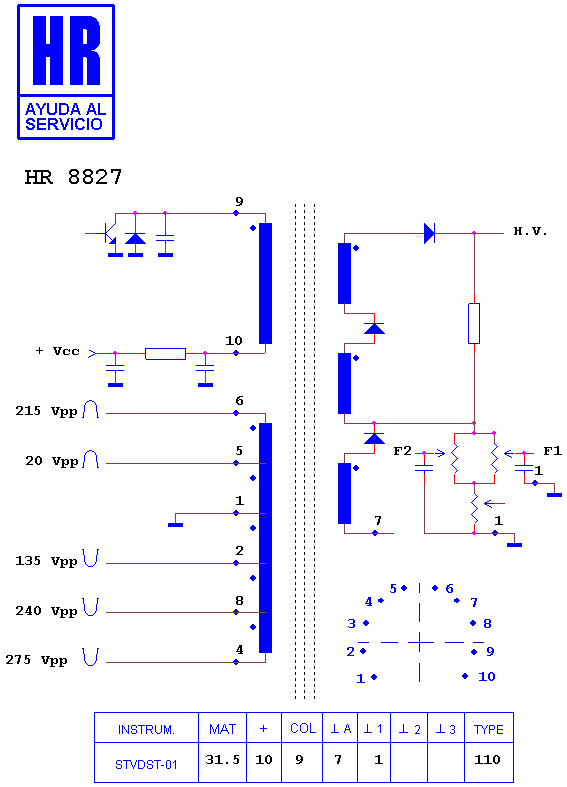

HR 8827

type ST · family 1RD · 31.5 kV maximum anode voltage · 110° deflection · 3 windings · 474 g

Manufacturer equivalents (16)

003311158 · 003323137 · 003344480 · 057.934 EL 1 · 058.934 EL 1 · 058.934 TR 1 · 1372.7003 · 1372.7003 A · 1372.7003 C · FAT30808 · HR 8827 · M 12-129 · RO 681 · RO689 · TR 681 · TR689

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8812 · HR 8700 · HR 8775 · HR 8732 · HR 8336 · HR 8519 · HR 8960 · HR 80068 · HR 7076 · HR 80024 · HR 7767 · HR 7987

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

BEKO - BEKOTEKNIK 29 B 4 T 25 · FIRST LINE FL 2901 · FIRST LINE NR FL 2901 · NEUFUNK NR RFL 72 BE

Search this part in the full database
