HR 8960

32.7 kV maximum anode voltage · 110° deflection · 3 windings · 374 g

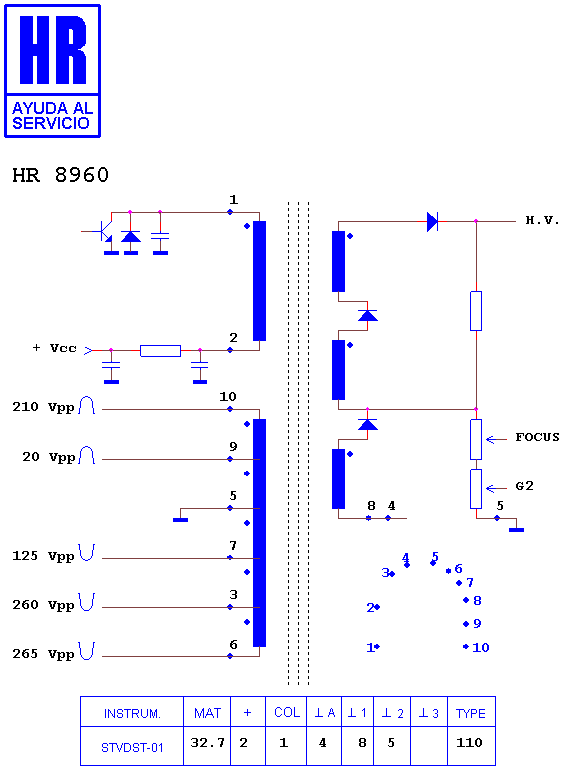

Schematic diagram for HR 8960
schematic (archived)

Manufacturer equivalents (10)

003313157 · 057.934EL3 · 057.934R-E3 · 1352.5075 · 1352.5075A · 75955.098.97 · 75955.098.9700 · HR 8960 · RO697 · TR697

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8732 · HR 80068 · HR 7987 · HR 80024 · HR 8714 · HR 8506 · HR 80142 · HR 8336 · HR 8519 · HR 5717 · HR 7076 · HR 8894

Fitted to (1)

BLUE SKY BK 72 RF IT
