HR 7837

type ST · family 1YP · 20.4 kV maximum anode voltage · 90° deflection · 3 windings · 398 g

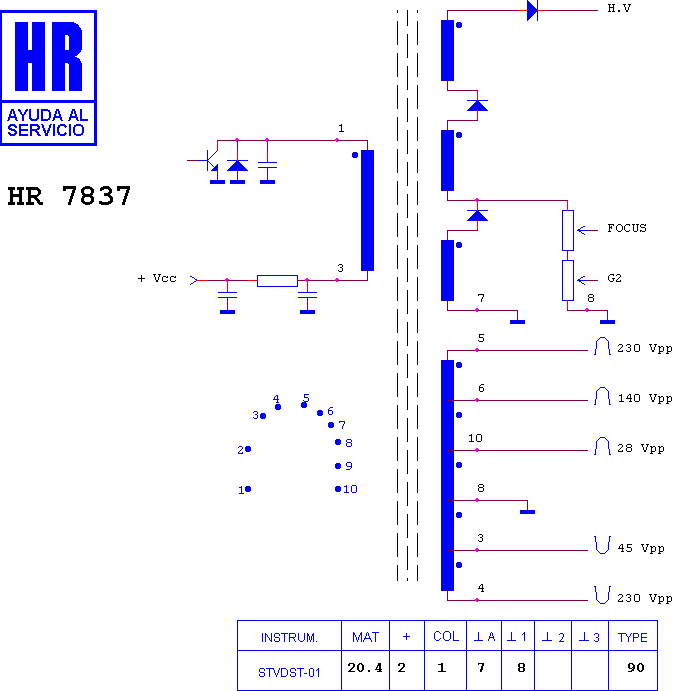

Schematic diagram for HR 7837
schematic

Manufacturer equivalents (1)

2436773

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7633 · HR 7655 · HR 7970 · HR 8573 · HR 7028 · HR 7770 · HR 7081 · HR 8654 · HR 7493 · HR 7843 · HR 8207 · HR 7044

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
