HR 7044

type ST · family 1AP2 · 20.6 kV maximum anode voltage · 90° deflection · 5 windings · 320 g

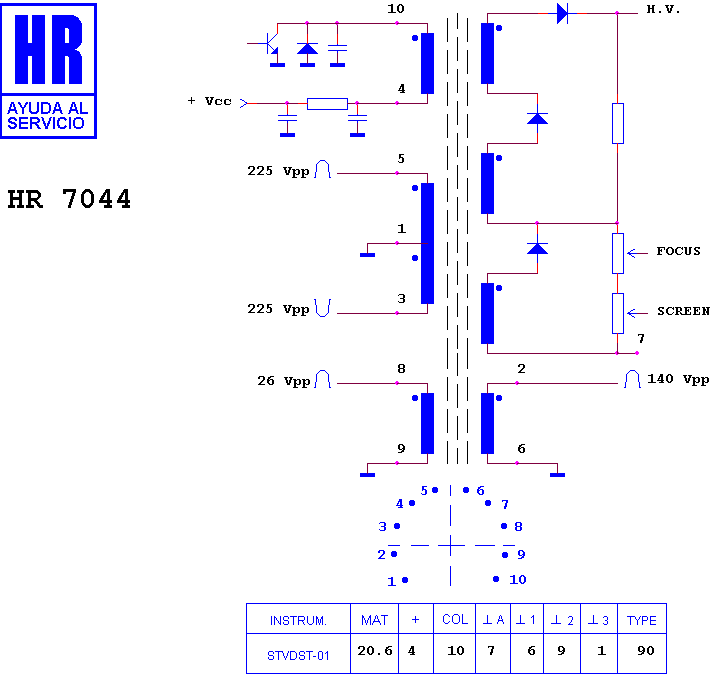

Schematic diagram for HR 7044
schematic

Manufacturer equivalents (4)

32314.00 · 32314.01 · 32314.02 · HR 7044 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7045 · HR 7209 · HR 7493 · HR 7129 · HR 7145 · HR 7878 · HR 7374 · HR 8783 · HR 8768 · HR 8102 · HR 7127 · HR 8484

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
