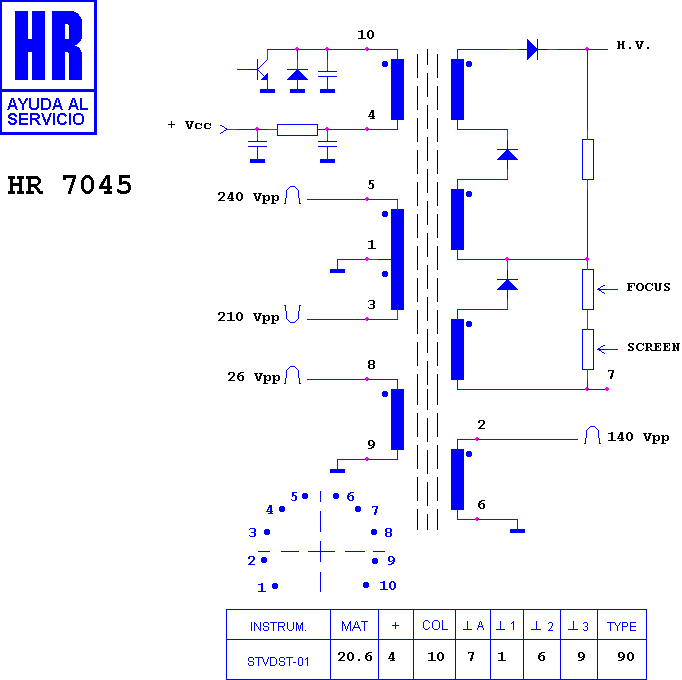

HR 7045

type ST · family 1AP1 · 20.6 kV maximum anode voltage · 90° deflection · 4 windings · 370 g

Manufacturer equivalents (5)

319327 · 32022.00 · 32322.00 · 32322.01 · HR 7045 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7044 · HR 7209 · HR 7126 · HR 7198 · HR 7234 · HR 8115 · HR 8768 · HR 8484 · HR 8114 · HR 7405 · HR 7404 · HR 7143

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

CLARIVOX CHASIS C 20 T 14"-15"-17" · CLARIVOX CHASIS C 21 FT 16" · CLARIVOX CHASIS CQ 8 · CLARIVOX CHASIS XM 4 · CLARIVOX PLATINA XM 4
