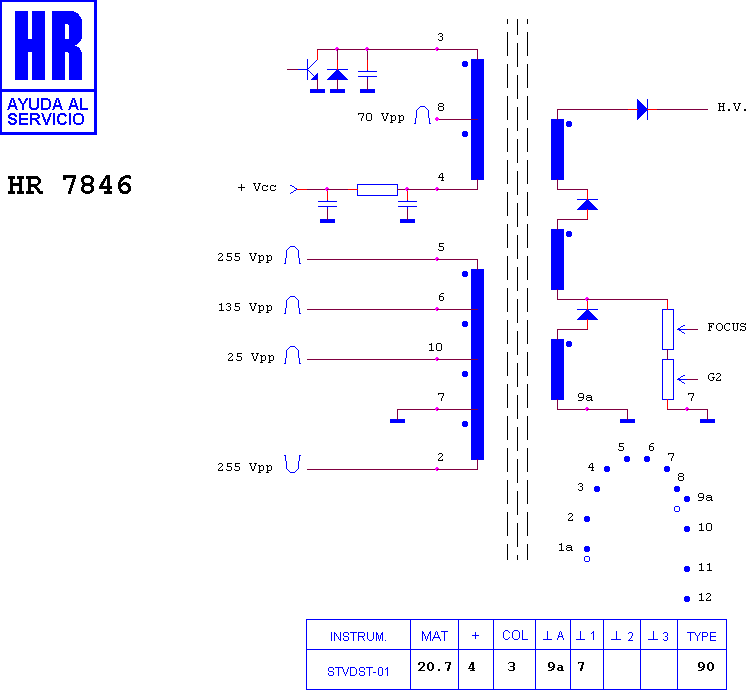

HR 7846

type ST · family 1CAP · 20.7 kV maximum anode voltage · 90° deflection · 3 windings · 270 g

Manufacturer equivalents (10)

002 651 0449 · 26510449 · F 1581 CE · F1585CE · FAT 3866 · KN 3866 · ME/6156-00 · MSH-1FCF17 · RTRNF1581CEZZ · RTRNF1585CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7807 · HR 7851 · HR 80076 · HR 7135 · HR 7028 · HR 7081 · HR 7455 · HR 8207 · HR 7816 · HR 7772 · HR 7839 · HR 7809

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

SHARP C 5407 SB · SHARP CV 5407 · SHARP CV 5407 N
