HR 7019

type ST · family 1AP2 · 17.8 kV maximum anode voltage · 90° deflection · 4 windings · 320 g

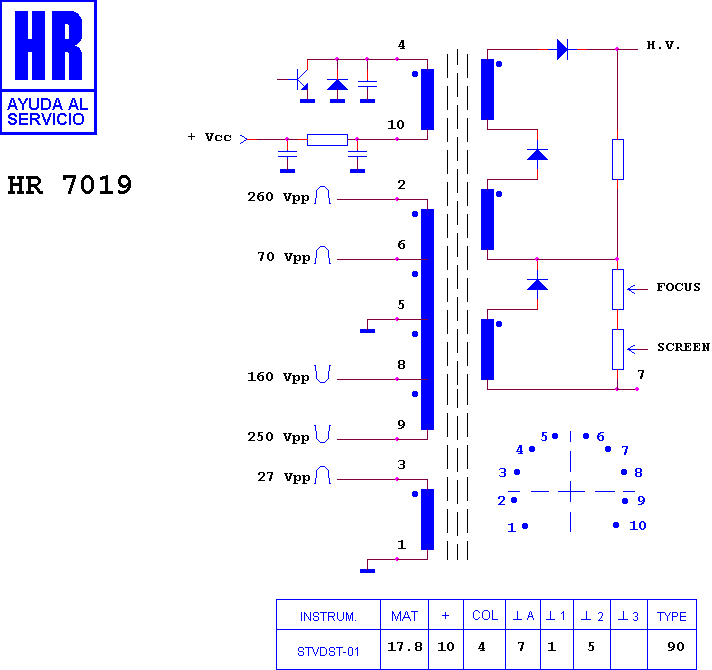

Schematic diagram for HR 7019
schematic

Manufacturer equivalents (1)

1105.0270

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7807 · HR 8654 · HR 7770 · HR 7655 · HR 7846 · HR 7851 · HR 6211 · HR 7227 · HR 7605 · HR 8207 · HR 8958 · HR 6039

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
