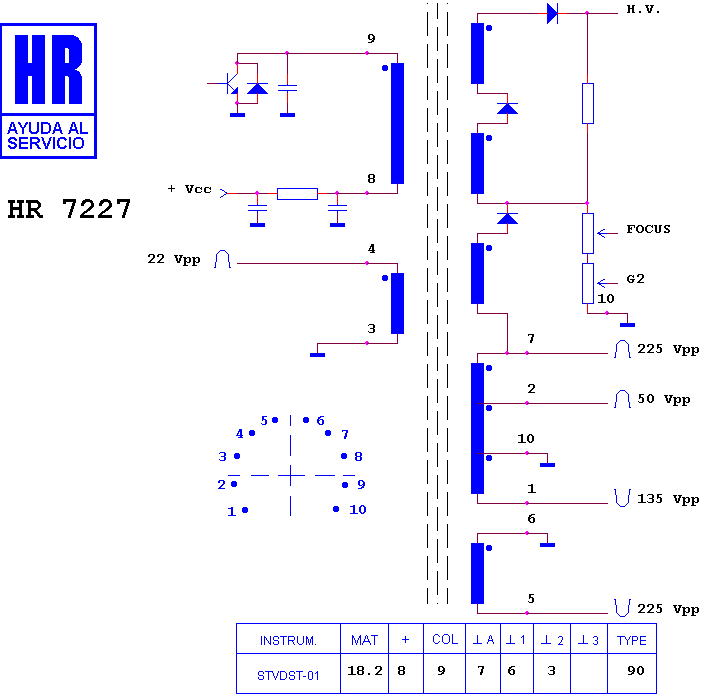

HR 7227

type ST · family 1AP1 · 18.2 kV maximum anode voltage · 90° deflection · 4 windings · 384 g

Manufacturer equivalents (12)

003311118 · FARAD 2 · FAT 30059 · HR 7227 · KN 30059 · M 12-26 · PET 32-A7 · RO 420 · TA/904L · TAA 904 L · TR 420 · TVL 120/1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7846 · HR 8654 · HR 6223 · HR 6039 · HR 7028 · HR 8573 · HR 7898 · HR 8007 · HR 6211 · HR 7605 · HR 6142 · HR 8067

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

UNIMOR 449 · UNIMOR 459 · UNIMOR CHASIS SIESTA 3
