HR 7702

type ST · family 1BP1 · 24.6 kV maximum anode voltage · 90° deflection · 4 windings · 428 g

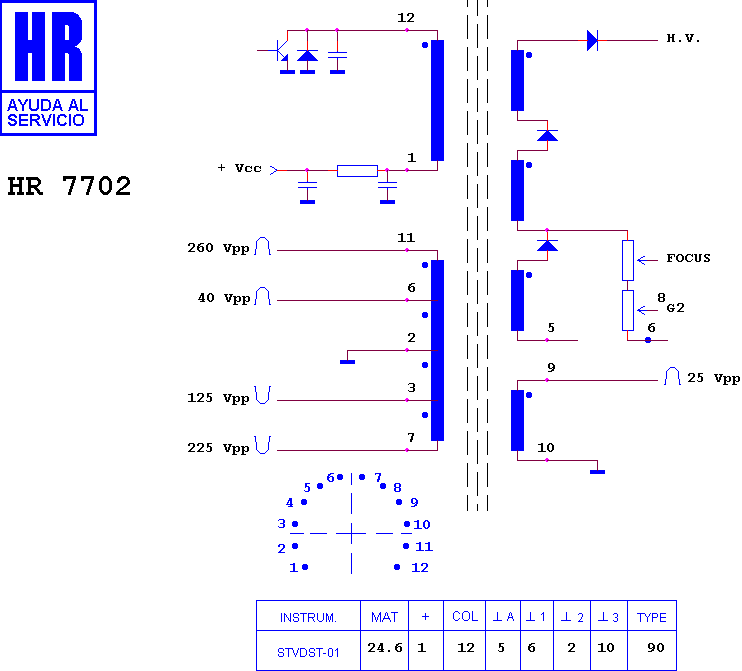

Schematic diagram for HR 7702
schematic

Manufacturer equivalents (8)

0036 2123 0002 · 00362123-0001 · 362123-0001 · 362123-0002 · 362123-1 · 362123-2 · 4835 310 57238 · 483514067006

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6397 · HR 7964 · HR 7633 · HR 7333 · HR 7081 · HR 7127 · HR 7126 · HR 7234 · HR 7198 · HR 7411 · HR 7209 · HR 7028

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
