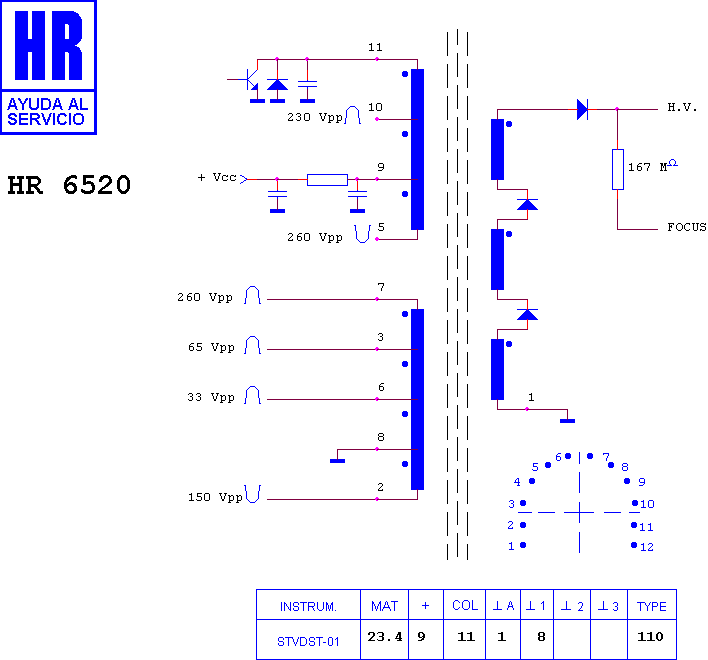

HR 6520

type ST · family 1BS2 · 23.4 kV maximum anode voltage · 110° deflection · 3 windings · 356 g

Manufacturer equivalents (3)

29201.029.57 · 29221.029.57 · 8 669 485 078

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6519 · HR 6508 · HR 80108 · HR 7676 · HR 6564 · HR 6578 · HR 6372 · HR 6647 · HR 8228 · HR 8766 · HR 8157 · HR 80116

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Fitted to (2)

GRUNDIG CHASIS CUC 6361 · GRUNDIG CHASIS CUC 6461
