HR 6508

type ST · family 1BS2 · 24.3 kV maximum anode voltage · 110° deflection · 3 windings · 366 g

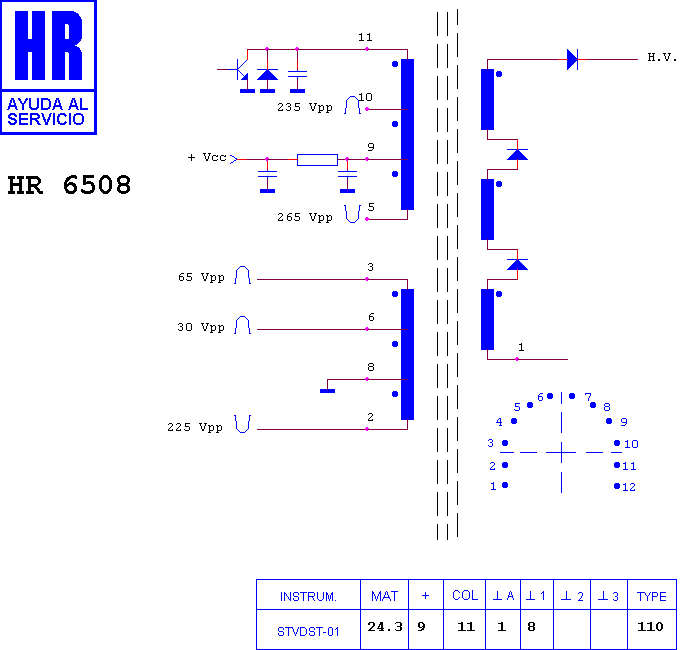

Schematic diagram for HR 6508
schematic

Manufacturer equivalents (4)

29201.029.06 · 29201.029.0600 · 29221.029.06 · 29221.029.0600

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6519 · HR 6520 · HR 6578 · HR 8007 · HR 6372 · HR 8010 · HR 7223 · HR 8968 · HR 8918 · HR 7069 · HR 6096 · HR 6163

Fitted to (5)

GRUNDIG 95-675/9 PIPTOP · GRUNDIG CHASIS CUC 6890 · GRUNDIG ST 95-675/9 PIP TOP · GRUNDIG SUPER COLOR ST · MINERVA CHASIS CUC 6890
