HR 7385

type ST · family 1AP1 · 30 kV maximum anode voltage · 110° deflection · 4 windings · 364 g

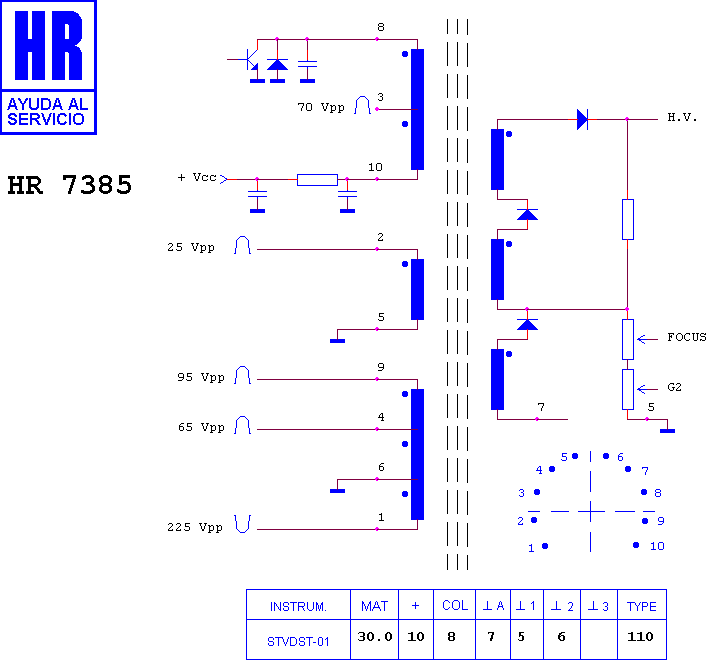

Schematic diagram for HR 7385
schematic

Manufacturer equivalents (6)

104402.80 · 104402I0 · 105328.30 · 27-5360-000 · 40330-30 · 63.2100.000

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7394 · HR 7856 · HR 6333 · HR 8292 · HR 6702 · HR 8684 · HR 80052 · HR 7329 · HR 6343 · HR 8031 · HR 8862 · HR 6268

Fitted to (5)

ELBE 25 S 545 · ELBE 29 S 545 · ELBE CHASIS PC 170 · SELECO 29 S 545 · SELECO CHASIS PC 170
