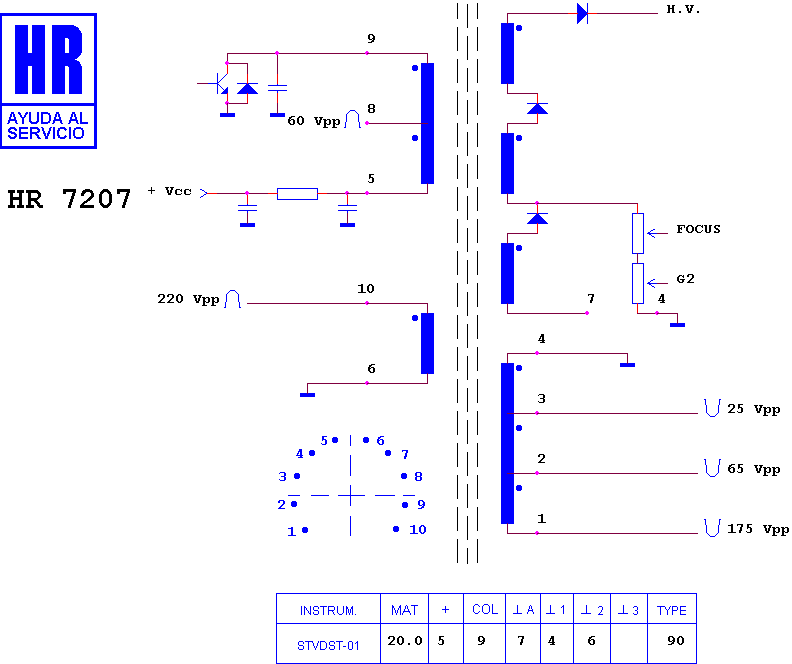

HR 7207

type ST · family 1AP1 · 20 kV maximum anode voltage · 90° deflection · 4 windings · 370 g

Manufacturer equivalents (15)

003021007 · 003141059 · 0094500342 · 0094500911 · 0094500912 · 32017.00 · 32017.01 · 473244.00 · BSC 25-02 A · JF 0501-1611 · KN 30198 · RO 357 · RO 372 · TR 326 · TR 372

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7109 · HR 7921 · HR 7908 · HR 8263 · HR 8135 · HR 7532 · HR 7997 · HR 7169 · HR 6093 · HR 6398 · HR 7284 · HR 6219

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

IMPER 5148
