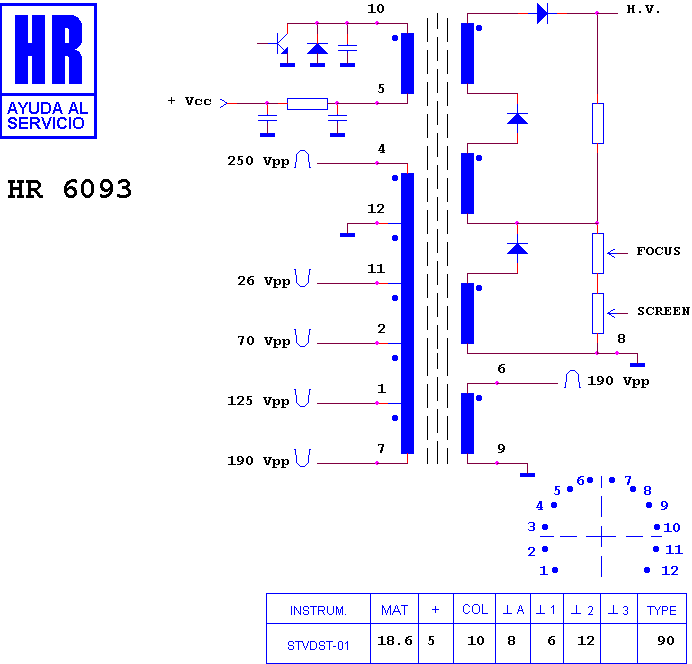

HR 6093
Manufacturer equivalents (4)
37352.00 · 37352.01 · 472614.00 · 534 TX 0325
Possible substitutes
Parts of a similar design. A shortlist to check, not a recommendation.
HR 7839 · HR 7722 · HR 8958 · HR 7135 · HR 7598 · HR 7809 · HR 7168 · HR 7518 · HR 7147 · HR 7597 · HR 8922 · HR 7455
Notes
THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
Fitted to (9)
SABA CHASIS ICC 3 · SABA SV 21-1 · SABA SV 21-1/1 · SABA SV 21-1/2 · TELEFUNKEN CHASIS ICC 3 · THOMSON CHASIS ICC 3 21" 90§ · THOMSON TVC 21 T 1 · THOMSON TVC 21 T 2 · THOMSON TVC 21 V 1
