HR 8904

22.1 kV maximum anode voltage · 90° deflection · 4 windings · 400 g

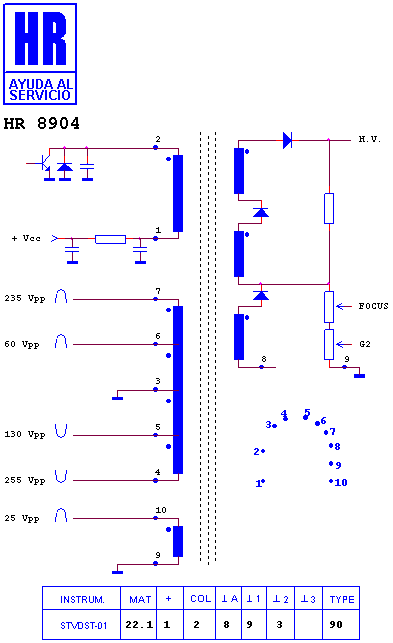

Schematic diagram for HR 8904
schematic (archived)

Manufacturer equivalents (6)

107312.50 · 10831082 · 1142.7025 · 313010831081 · 313010831082 · 40337-60

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8958 · HR 80076 · HR 7135 · HR 8573 · HR 7633 · HR 6223 · HR 7028 · HR 7702 · HR 7839 · HR 7816 · HR 8928 · HR 7772

Fitted to (21)

GARZA GA 21 TX · GARZA GA 21 TX SILVER · ORION CHASIS CTS-AA · ORION TV 573 TX · SCHNEIDER 21 200 · SCHNEIDER 21-200 · SCHNEIDER STV 3645 T · SEI-SINUDYNE 20421 · SEI-SINUDYNE CHASIS CTS-AA · SEI-SINUDYNE MAMBO · SIERA CHASIS CTS-AA · SIERA SG 2000 N · SIERA ST 21 P · SIERA UVSH-SG 200 N · SINUDYNE 20421 · SINUDYNE CHASIS CTS-AA · SINUDYNE MAMBO · TECNIMAGEN 20 TXS · TECNIMAGEN CHASIS CTS-AA · TENSAI CHASIS CTS-AA · TENSAI TCT 2005 PX
