HR 7284

type ST · family 1AP1 · 17.9 kV maximum anode voltage · 90° deflection · 3 windings · 360 g

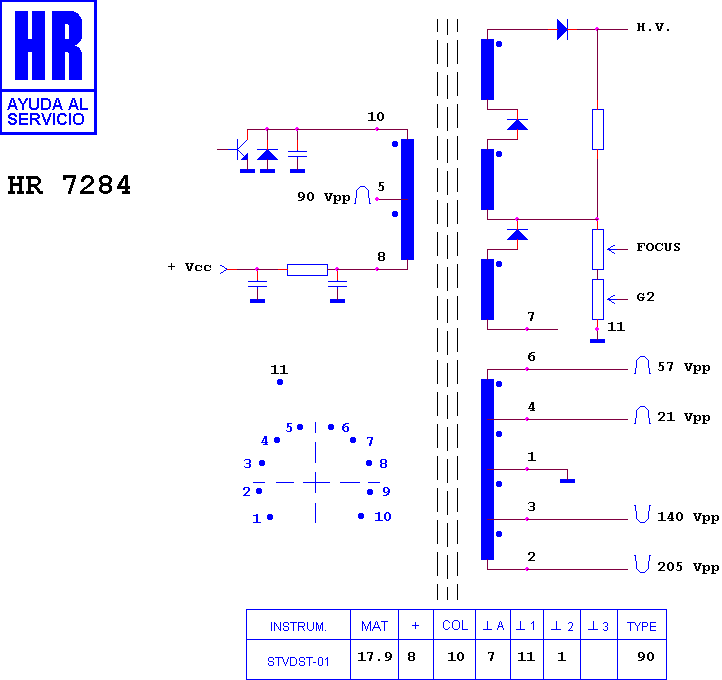

Schematic diagram for HR 7284
schematic

Manufacturer equivalents (7)

103553.60 · 1192.0887 · 1192.0897 · 13330471 · 1362.3040 · 1362.3052 · 40330-15

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7584 · HR 7596 · HR 7168 · HR 7058 · HR 7598 · HR 7338 · HR 8922 · HR 6555 · HR 6093 · HR 8263 · HR 7518 · HR 7597

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
