HR 7030

type ST · family 1NP1 · 18.5 kV maximum anode voltage · 90° deflection · 3 windings · 276 g

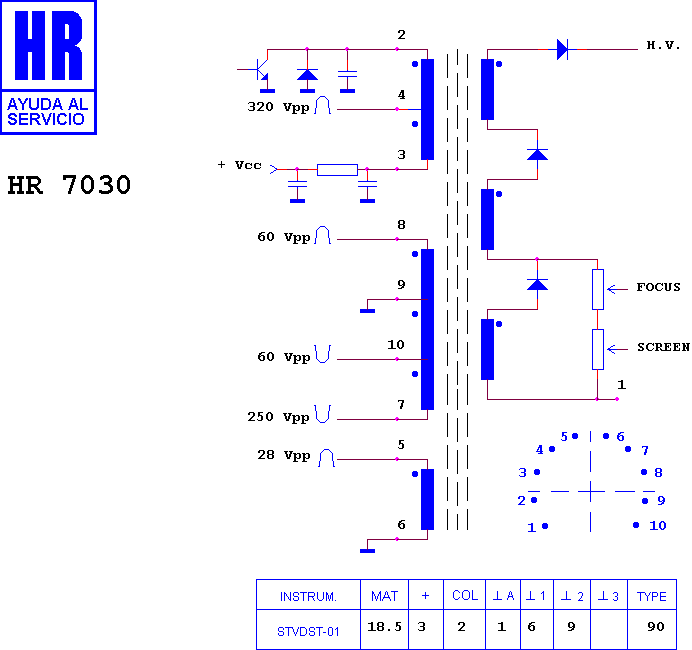

Schematic diagram for HR 7030
schematic

Manufacturer equivalents (1)

HR 7030

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7328 · HR 7578 · HR 8559

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
