HR 8559

type ST · family 1AP1 · 16.1 kV maximum anode voltage · 90° deflection · 5 windings · 390 g

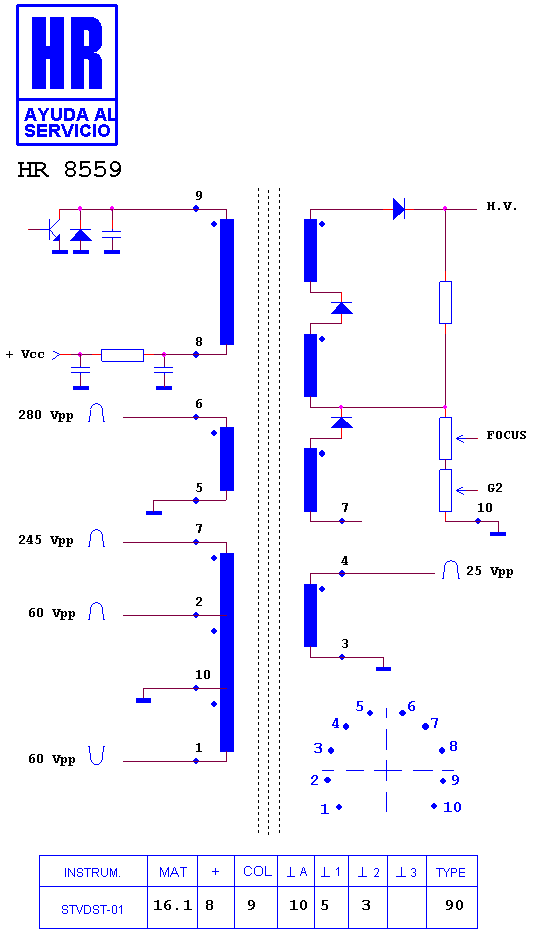

Schematic diagram for HR 8559
schematic

Manufacturer equivalents (9)

003311154 · AFS 271 · FAT30596 · KN30596 · M 12-16 · PET32-A8 · T 90.1 · TA/901 · TA/901L

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7578 · HR 7566 · HR 7189 · HR 7004 · HR 7030 · HR 7160 · HR 7110 · HR 7109 · HR 7051

Fitted to (1)

ELEMIS 6330 ST
