HR 7189

type ST · family 1NP1 · 19.3 kV maximum anode voltage · 90° deflection · 5 windings · 278 g

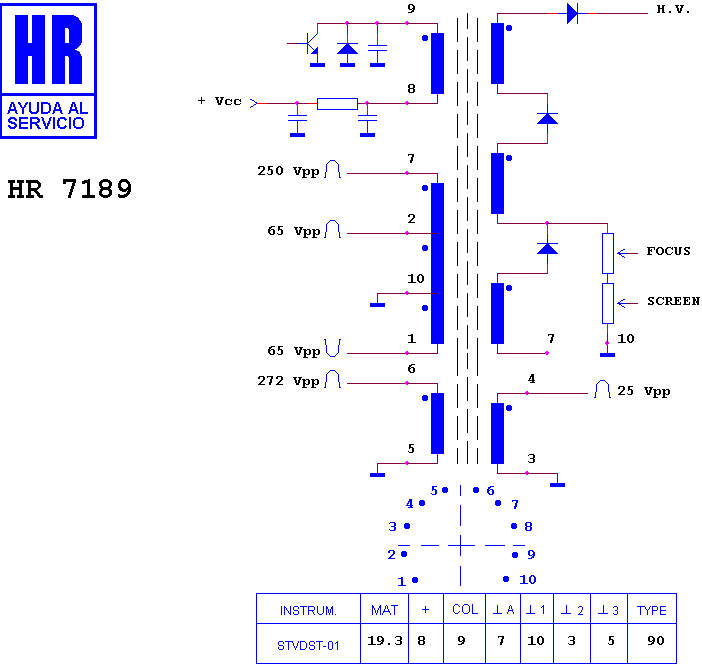

Schematic diagram for HR 7189
schematic

Manufacturer equivalents (1)

HR 7189-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7578 · HR 7175 · HR 7566 · HR 8559 · HR 7160 · HR 7109 · HR 7110

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
