HR 7824

type ST · family 1VP · 28.4 kV maximum anode voltage · 90° deflection · 3 windings · 388 g

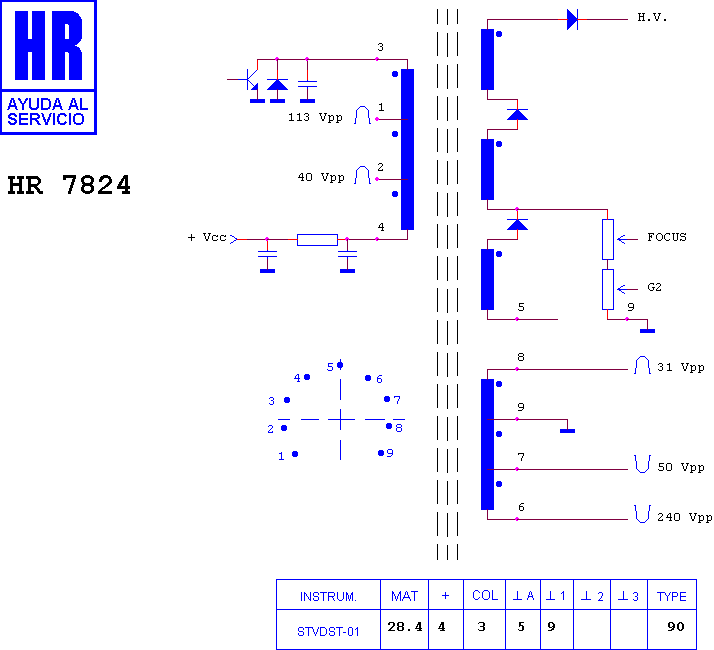

Schematic diagram for HR 7824
schematic

Manufacturer equivalents (3)

TLF 14557 · TLF 14577 B · TLF 14577 F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8308 · HR 8953 · HR 7328 · HR 8130 · HR 8284 · HR 8359 · HR 7004 · HR 8097

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
