HR 6619

type SM · family 1IP · 30.1 kV maximum anode voltage · H° deflection · 7 windings · 436 g

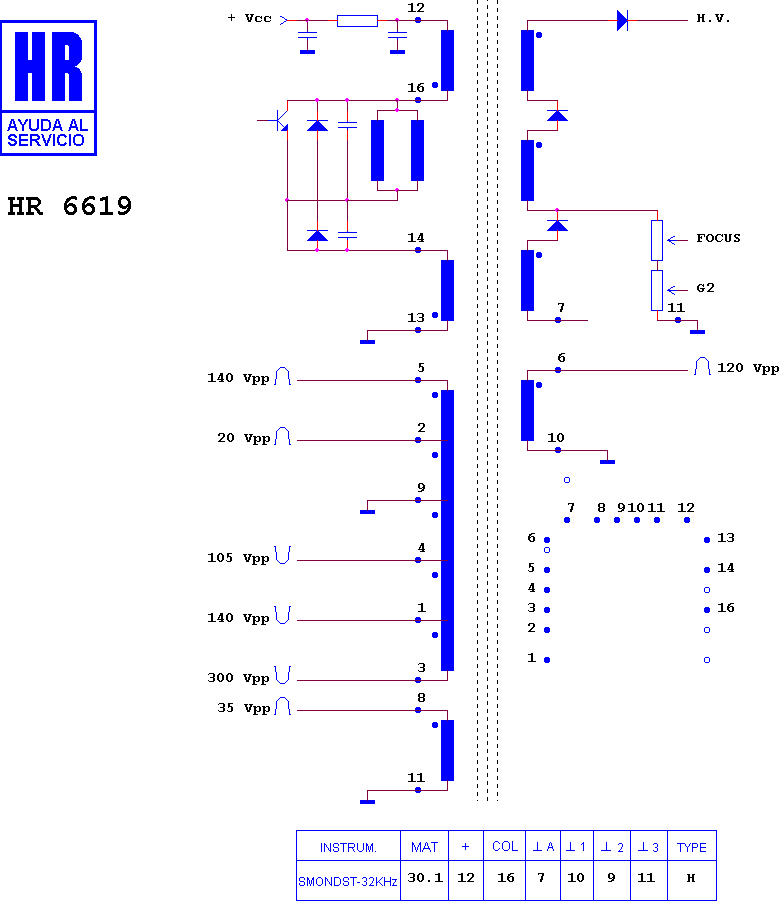

Schematic diagram for HR 6619
schematic

Manufacturer equivalents (11)

140 10363 · 3122 138 37675 · 37670 · 37671 · 37672 · 37673 · 37674 · 37675 · 4812 140 10363 · 4822 140 10363 · FAT30178

Fitted to (9)

PHILIPS 33 CE 7539 · PHILIPS 33 CE 7539/10 R · PHILIPS 33 CE 7539/19 R · PHILIPS 33 CE 7539/30 R · PHILIPS 33 CE 7539/33 R · PHILIPS 33 CE 7539/39 R · PHILIPS CHASIS 3 A · PHILIPS CHASIS 3 A 100 HZ · PHILIPS MATCHLINE RECEIVER
