HR 8498

type ST · family 1XP1 · 19.2 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

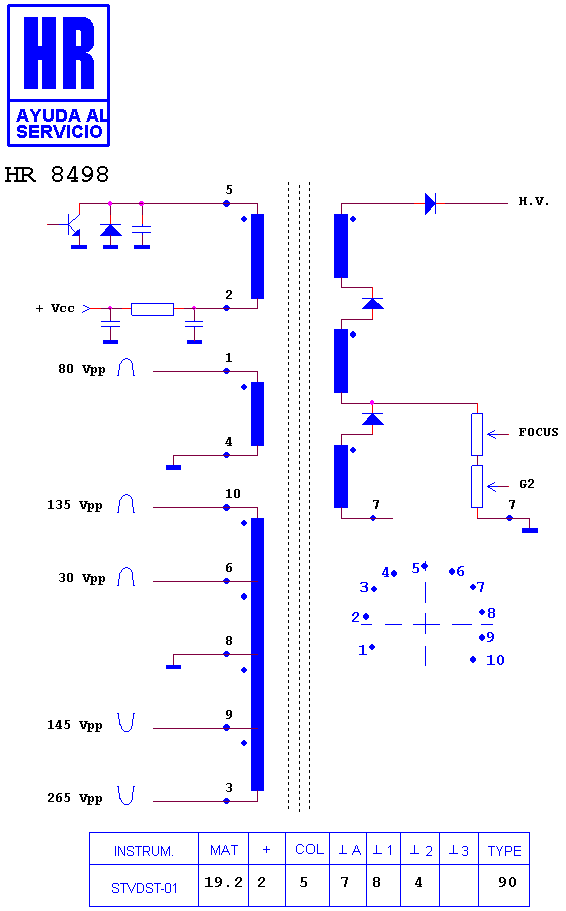

Schematic diagram for HR 8498
schematic

Manufacturer equivalents (3)

043214013 · 0432140131 · 3214013

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7830 · HR 7567 · HR 7723 · HR 8227 · HR 7822 · HR 7563 · HR 7669 · HR 8143 · HR 8217 · HR 8047 · HR 7919 · HR 8922

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
