HR 8227

type ST · family 1XP1 · 20.7 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

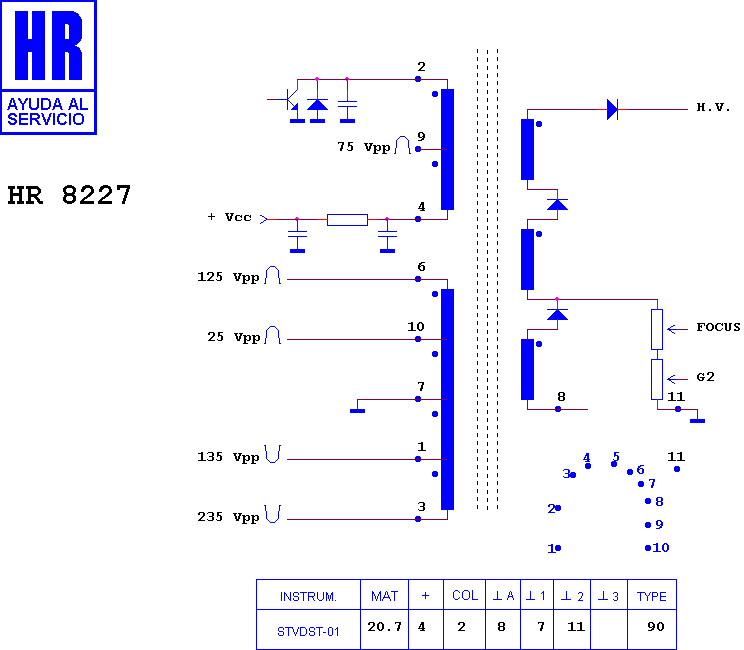

Schematic diagram for HR 8227
schematic

Manufacturer equivalents (2)

F 1840 CE · RTRNF1840CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8217 · HR 8696 · HR 7669 · HR 7822 · HR 7711 · HR 7830 · HR 6090 · HR 7567 · HR 7854 · HR 7983 · HR 8143 · HR 7147

Fitted to (3)

SHARP C 5490 · SHARP C 5490 SN · SHARP C 5496 SN
