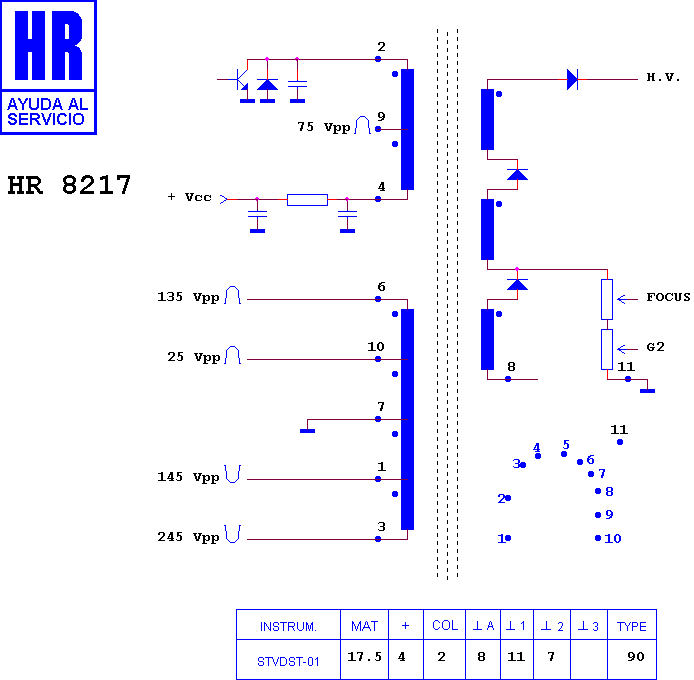

HR 8217

type ST · family 1XP1 · 17.5 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (4)

002 651 0647 · 26510647 · F 1839 CE · RTRNF1839CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8227 · HR 7669 · HR 8696 · HR 7905 · HR 8498 · HR 7830 · HR 7656 · HR 7983 · HR 7657 · HR 7919 · HR 8922 · HR 7567

Notes

COD-001 ATENTION;DON'T INVERT THE CONNECTION OF THE EXTERNALSINCRONIZATION WINDING.

Fitted to (6)

SHARP C 5190 SN · SHARP C 5196 CE · SHARP C 5196 SN · SHARP C 5490 SN · SHARP C 5496 · SHARP C 5496 CE
