HR 8586

type ST · family 1XP1 · 19.7 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

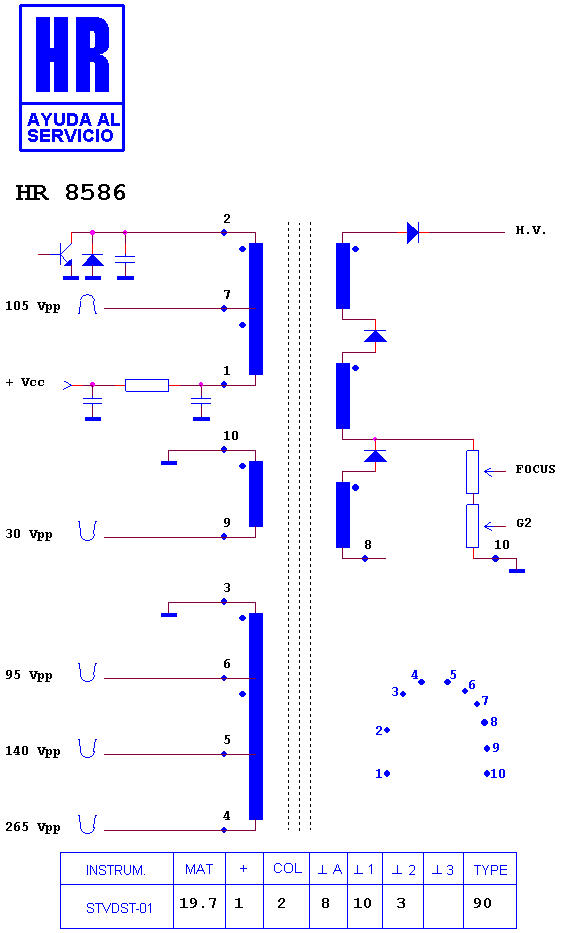

Schematic diagram for HR 8586
schematic

Manufacturer equivalents (7)

11020133292114 · 1142.5099 · 1142.5099 A · 700402215 · 88700402215 · FAT30750 · HR 8586

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8540 · HR 80293 · HR 8186 · HR 8143 · HR 8047 · HR 8142 · HR 7660 · HR 8820 · HR 7659 · HR 7856 · HR 7563 · HR 7850

Fitted to (3)

FORMENTI - ADMIRAL CHASIS F 22 14" · WESTINGHOUSE W 2 H 371 TXT · WHITE-WESTINGHOUSE W 2 H 371 TXT
