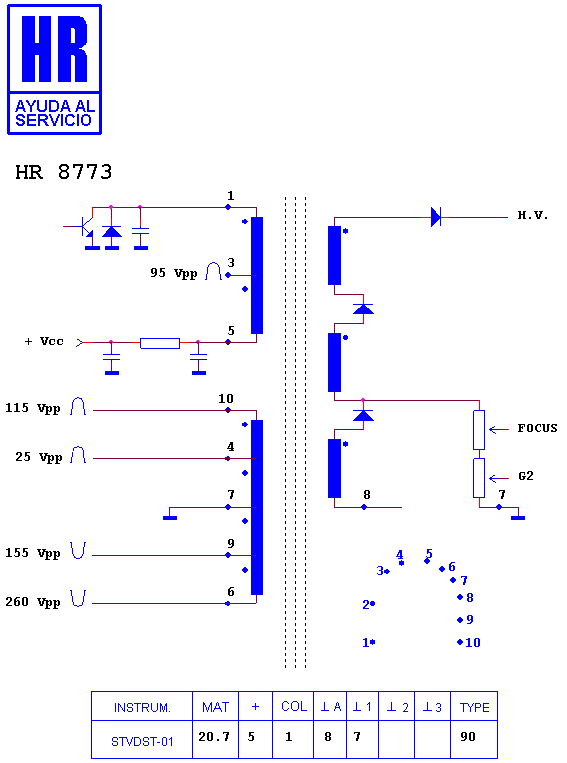

HR 8773

type ST · family 1XP1 · 20.7 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (1)

FCM 20 B 007

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7850 · HR 7791 · HR 7518 · HR 7612 · HR 8094 · HR 7754 · HR 8820 · HR 8922 · HR 7588 · HR 8677 · HR 7892 · HR 8696

Search this part in the full database
