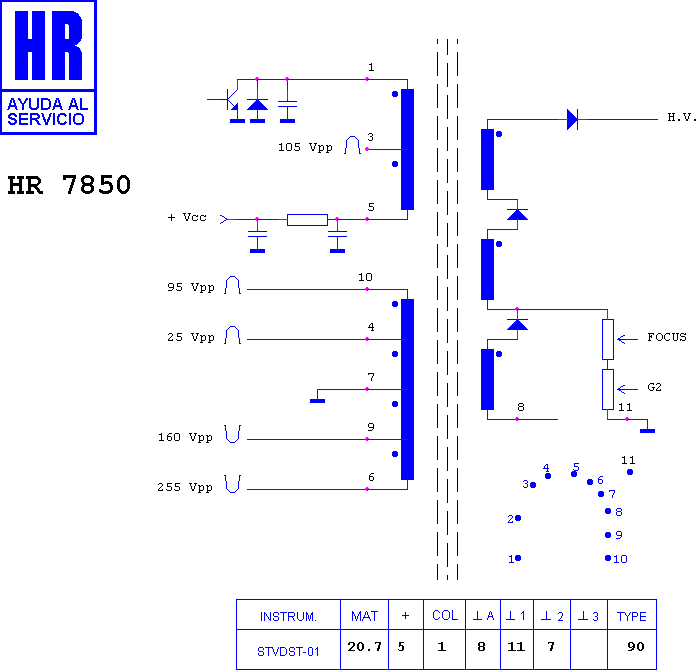

HR 7850

type ST · family 1XP1 · 20.7 kV maximum anode voltage · 90° deflection · 3 windings · 256 g

Manufacturer equivalents (3)

154 177 Q · FAT 30159 · KN 30159

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8773 · HR 7791 · HR 7612 · HR 7518 · HR 8094 · HR 7754 · HR 8820 · HR 8296 · HR 8677 · HR 7892 · HR 8142 · HR 7588

Fitted to (1)

TEAC MV 2010
