HR 7791

type ST · family 1XP1 · 21 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

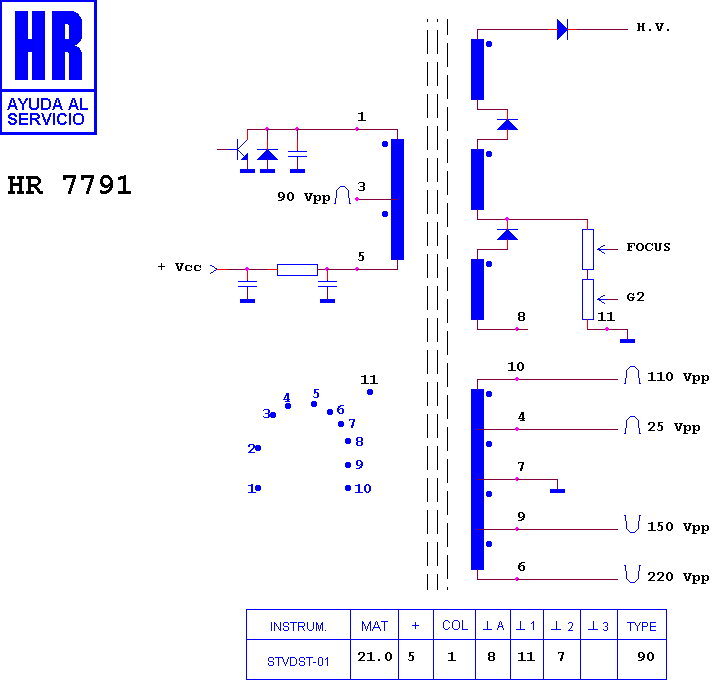

Schematic diagram for HR 7791
schematic

Manufacturer equivalents (4)

154 064 U · AFS 237 · FCK 14 B 040 · FCM14B040

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7464 · HR 7783 · HR 7518 · HR 7687 · HR 8094 · HR 7850 · HR 8773 · HR 7918 · HR 8358 · HR 8296 · HR 8677 · HR 7147

Fitted to (1)

FUNAI CHASIS MK 8 14"
