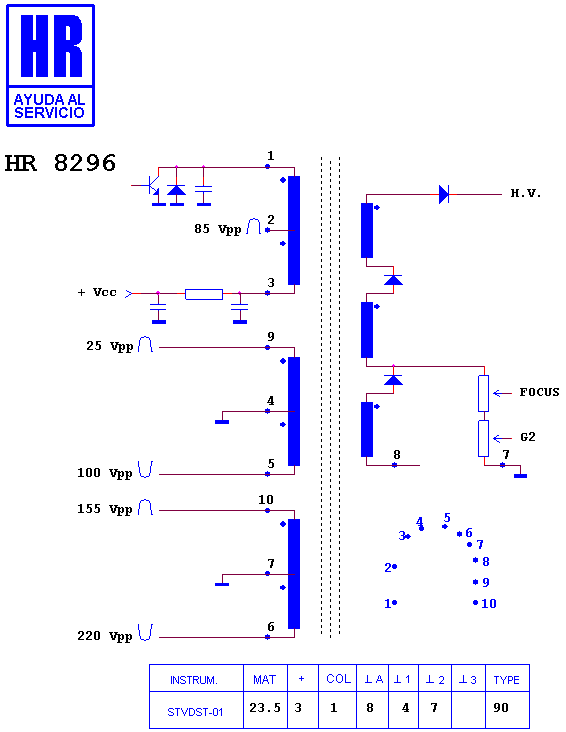

HR 8296

type ST · family 1YP · 23.5 kV maximum anode voltage · 90° deflection · 4 windings · 410 g

Manufacturer equivalents (2)

FBT 3380 · TAT3380

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8142 · HR 7721 · HR 7711 · HR 7983 · HR 7892 · HR 7726 · HR 8088 · HR 7793 · HR 7730 · HR 8605 · HR 7457 · HR 7822

Fitted to (1)

CCE HPS 3380
