HR 8120

type ST · family 1NP1 · 21.4 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

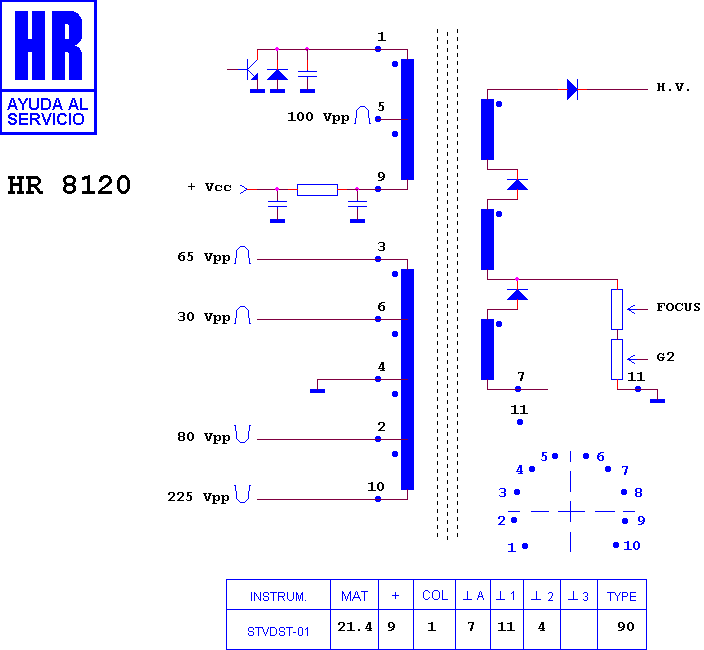

Schematic diagram for HR 8120
schematic

Manufacturer equivalents (4)

103583.40 · 63.2094.000 · FAT30410 · KN30410

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7018 · HR 7291 · HR 8710 · HR 7169 · HR 7532 · HR 7882 · HR 7808 · HR 80078 · HR 7856 · HR 7997 · HR 7908 · HR 7585

Search this part in the full database
