HR 7882

type ST · family 1NP1 · 20 kV maximum anode voltage · 90° deflection · 3 windings · 292 g

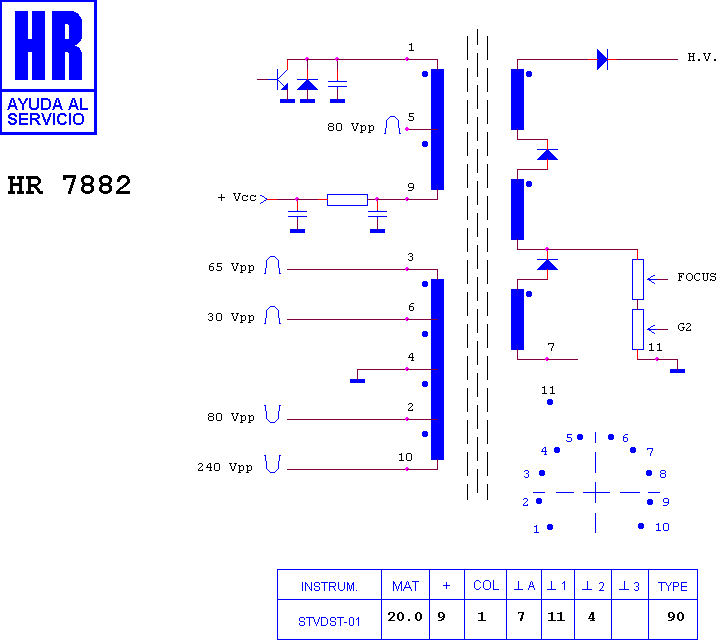

Schematic diagram for HR 7882
schematic

Manufacturer equivalents (2)

103544.90 · 40309-27

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7877 · HR 8120 · HR 7532 · HR 7169 · HR 7018 · HR 8710 · HR 7293 · HR 7291 · HR 7997 · HR 7808 · HR 6308 · HR 7908

Fitted to (4)

ELBE 51 M 604 · ELBE CHASIS PC 180 · SELECO 21 SS 615 · SELECO CHASIS PC 180
